House Plan 108 Olive Street, Traditional House Plan

>

Floor plans

NDG 108

House Plan 108 Olive Street, Traditional House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 108
  • Total Living Space:2271Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 67
  • Width In.: 8
  • Depth Ft.: 58
  • Depth In.: N/A

Description

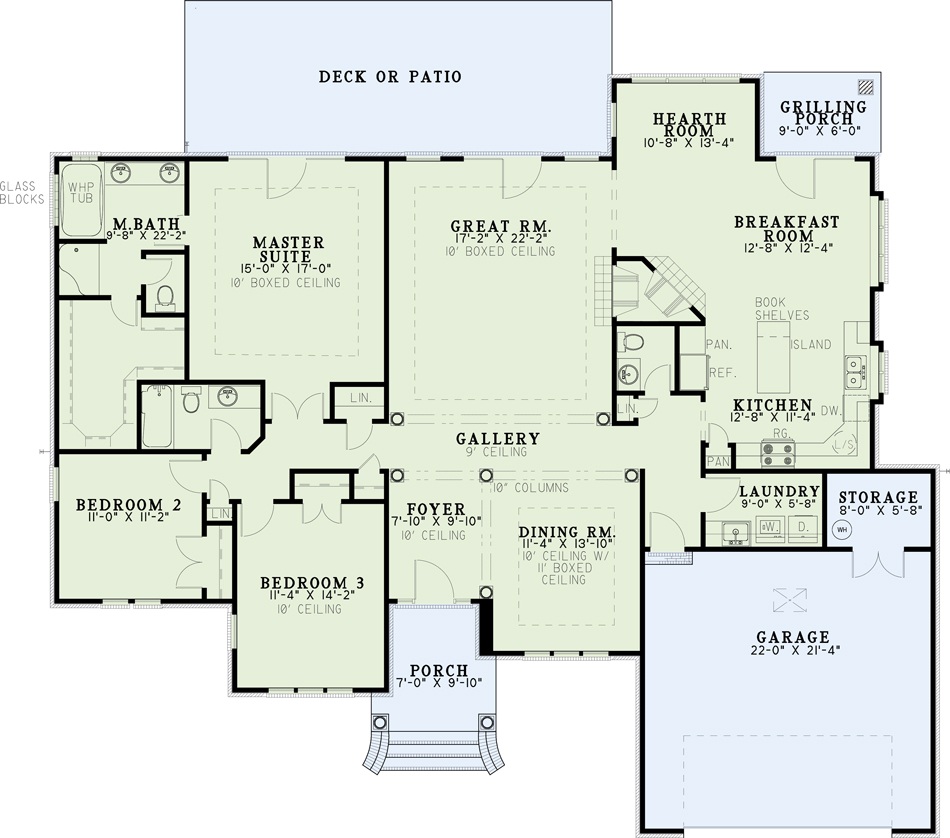

With boxed-ceilings and columns galore, this Nelson Design Group home is sure to be a crowd-pleaser. A roomy foyer leads to both great and dining rooms; all with ten-foot ceilings. The well-equipped kitchen has a convenient powder room and adjoining breakfast and hearth rooms; all sharing an angled fireplace. A handy grilling-porch is located just off the breakfast room while a large deck is available with access from master suite and great room. The lovely master suite has a private bathroom with whirlpool tub and enormous walk-in closet.

Specifications

  • Total Living Space:2271Sq.Ft.
  • Main Floor: 2271 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 133 Sq.Ft.
  • Garage (Sq.Ft.): 540 Sq.Ft.
  • Total Square Feet: 2944 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
