House Plan 816 Elm Street, Affordable House Plan
Plan Details
- Plan Number: NDG 816
- Total Living Space:1106Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 2 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 41
- Width In.: 4
- Depth Ft.: 39
- Depth In.: 8
Description

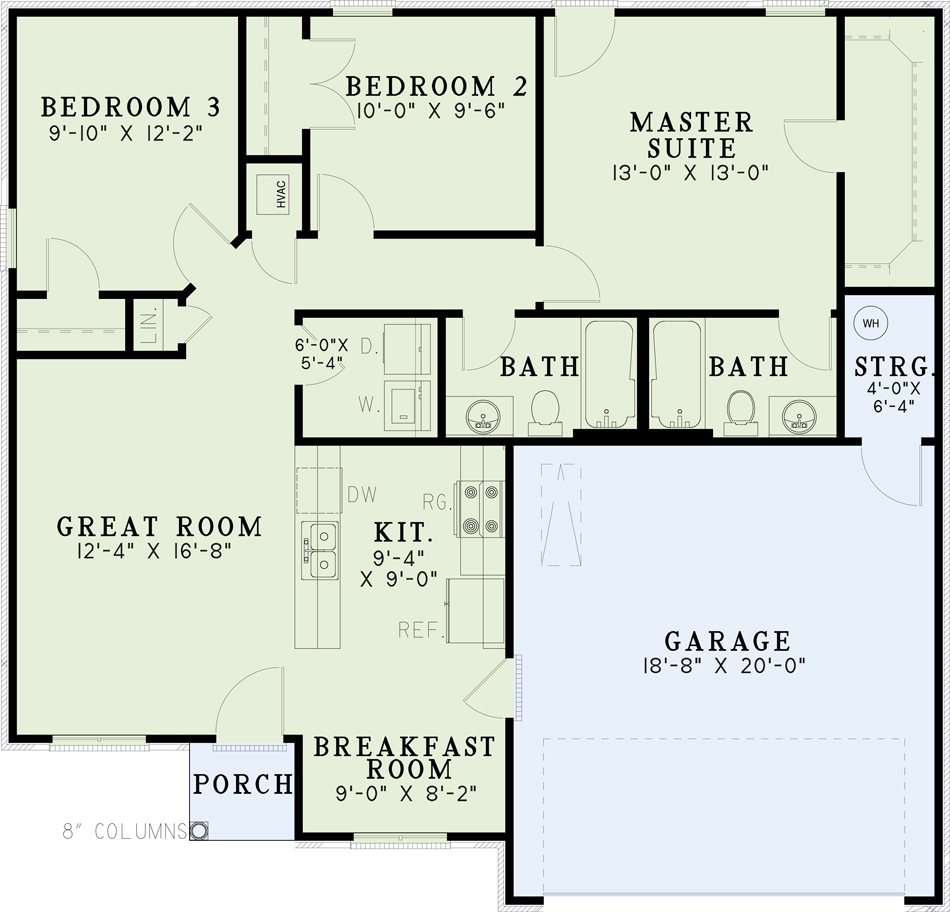

This design by Nelson Design Group utilizes every square inch! An 8-inch round column on the quaint entry porch gives an elegant flair to the exterior while angled walls create a unique interior design. A step-saver kitchen blends with the breakfast room and has a nearby garage entry for convenience. The private master suite with giant walk-in closet, enjoys French door access to the rear-yard.
Specifications
- Total Living Space:1106Sq.Ft.
- Main Floor: 1106 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 20 Sq.Ft.
- Garage (Sq.Ft.): 436 Sq.Ft.
- Total Square Feet: 1562 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 8
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 6:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 17
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
