House Plan 806B Ginger, Affordable House Plan

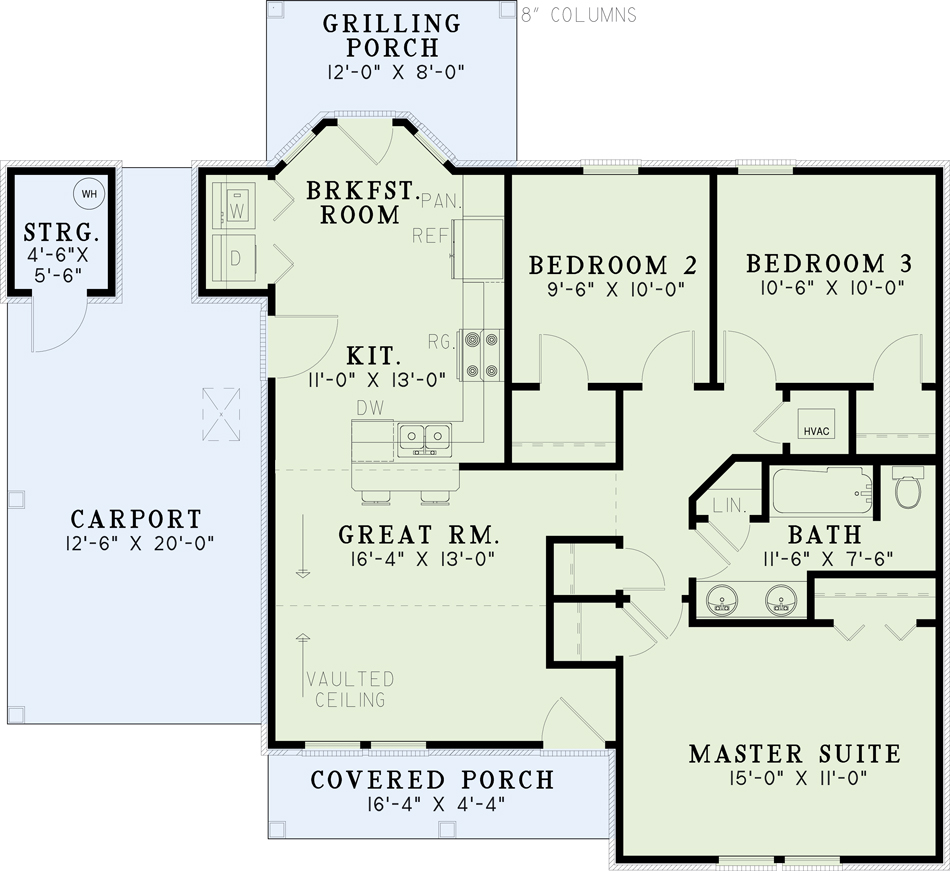

Floor plans
NDG 806B
House Plan 806B Ginger, Affordable House Plan
Plan Details
- Plan Number: NDG 806B
- Total Living Space:1021Sq.Ft.
- Bedrooms: 3
- Full Baths: 1
- Half Baths: N/A
- Garage: No
- Garage Type: Carport
- Carport: Yes
- Carport Type: Front Load
- Stories: 1
- Width Ft.: 44
- Width In.: 10
- Depth Ft.: 41
- Depth In.: 4
Description
Specifications
- Total Living Space:1021Sq.Ft.
- Main Floor: 1021 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 153 Sq.Ft.
- Garage (Sq.Ft.): 321 Sq.Ft.
- Total Square Feet: 1495 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 8
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 7:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 18
- Ridge Height (In.): 6
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
