House Plan 778 Rolling Oaks Drive, Traditional House Plan
Floor plans
NDG 778
House Plan 778 Rolling Oaks Drive, Traditional House Plan
Plan Details
- Plan Number: NDG 778
- Total Living Space:2263Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 1
- Garage: Yes 2 Bay
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 2
- Width Ft.: 64
- Width In.: 5
- Depth Ft.: 44
- Depth In.: 8
Description
This stunning two story design by Nelson Design Group provides excellent curb appeal. Welcome friends and family into the open foyer with inviting columns to all entrances. The expansive great room with relaxing fireplace will prove inviting when settling down for the evening. All the bedrooms upstairs provides closeness while keeping the downstairs for visitors. The bonus room will be an excellent future home theater for the family to enjoy.
Specifications
- Total Living Space:2263Sq.Ft.

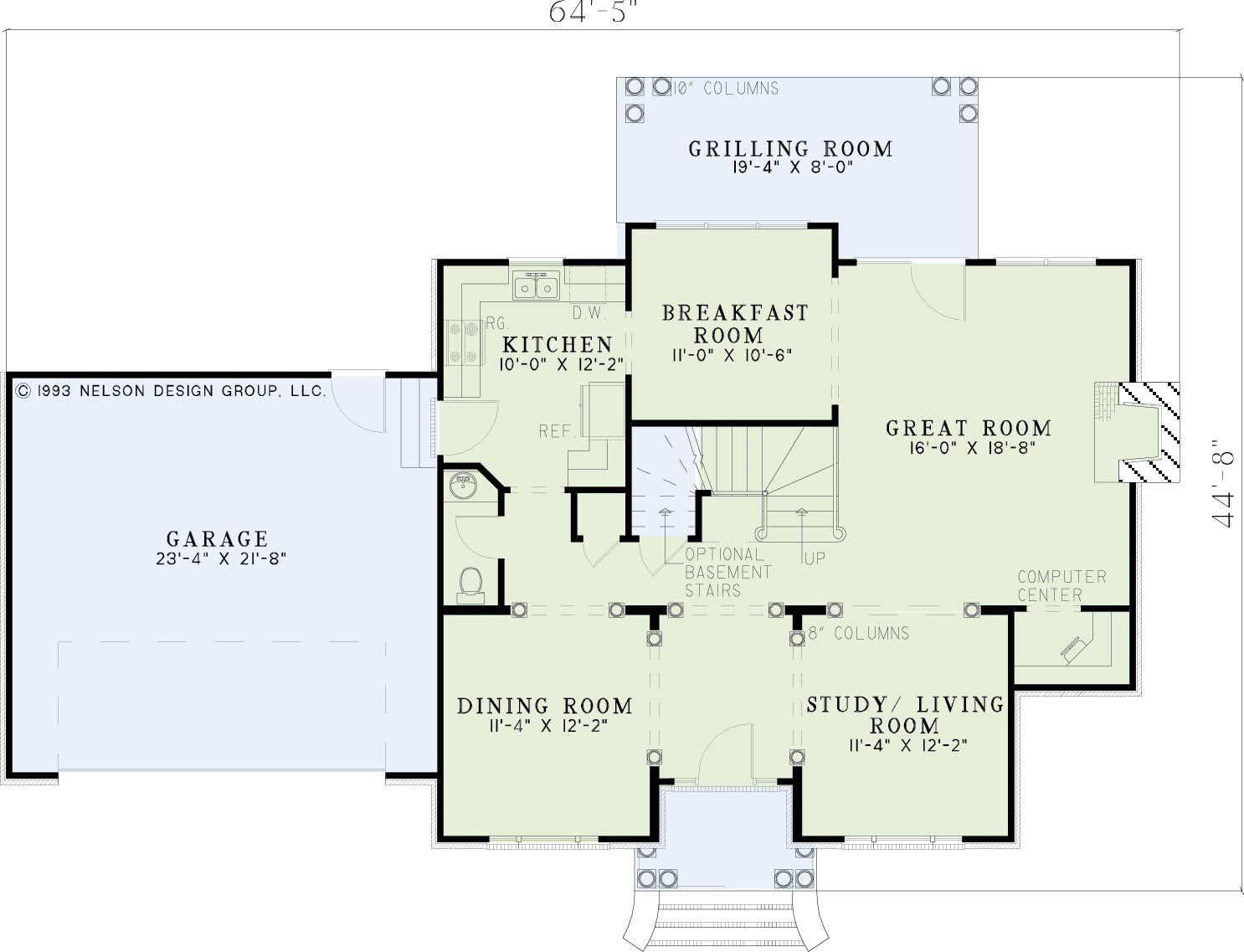

- Main Floor: 1171 Sq.Ft

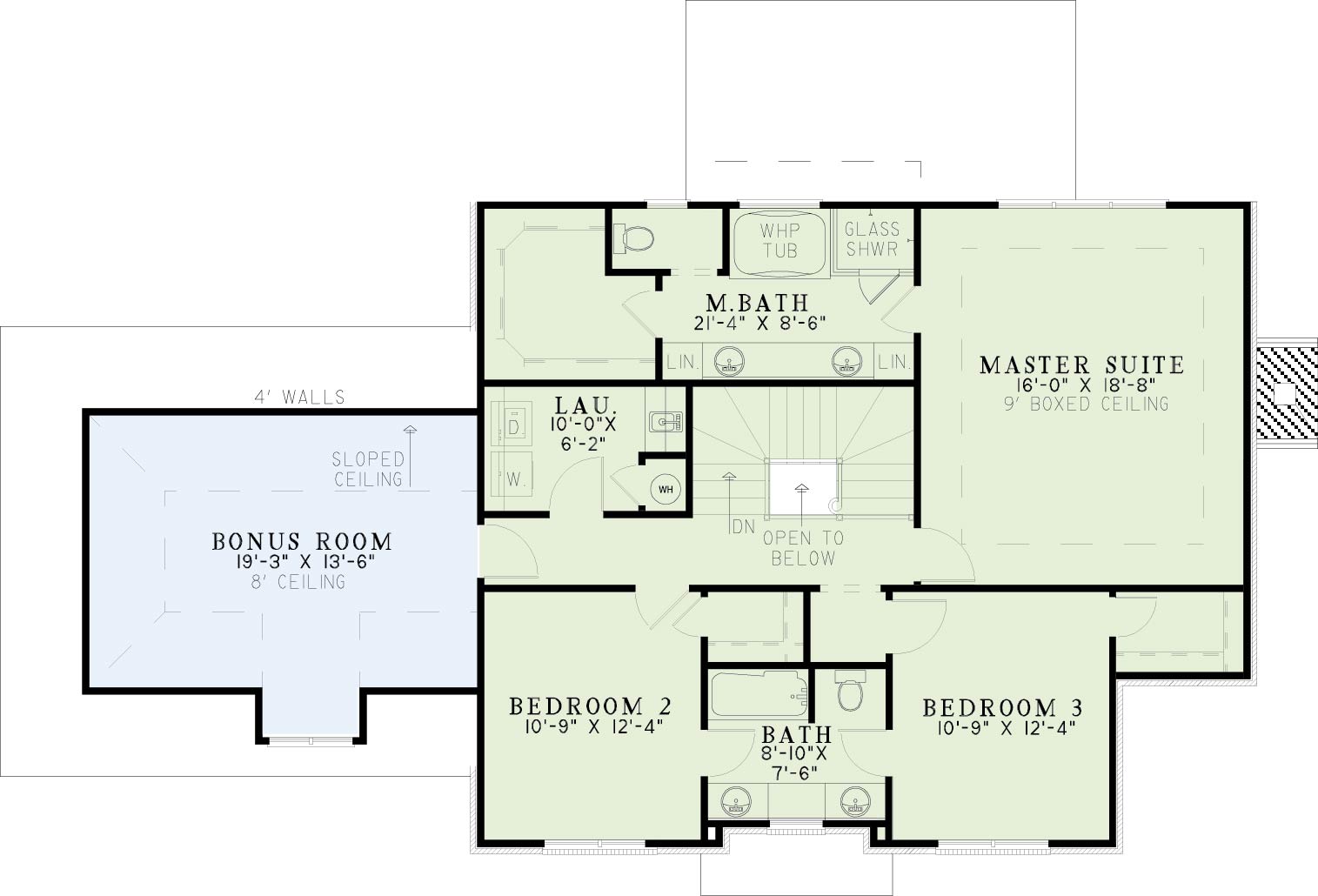

- Upper Floor (Sq.Ft.): 1092 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): 291 Sq.Ft.
- Porch (Sq.Ft.): 217 Sq.Ft.
- Garage (Sq.Ft.): 528 Sq.Ft.
- Total Square Feet: 3299 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 12:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 35
- Ridge Height (In.): 6
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
- Master Bedroom: Master Bedroom Upper Level
