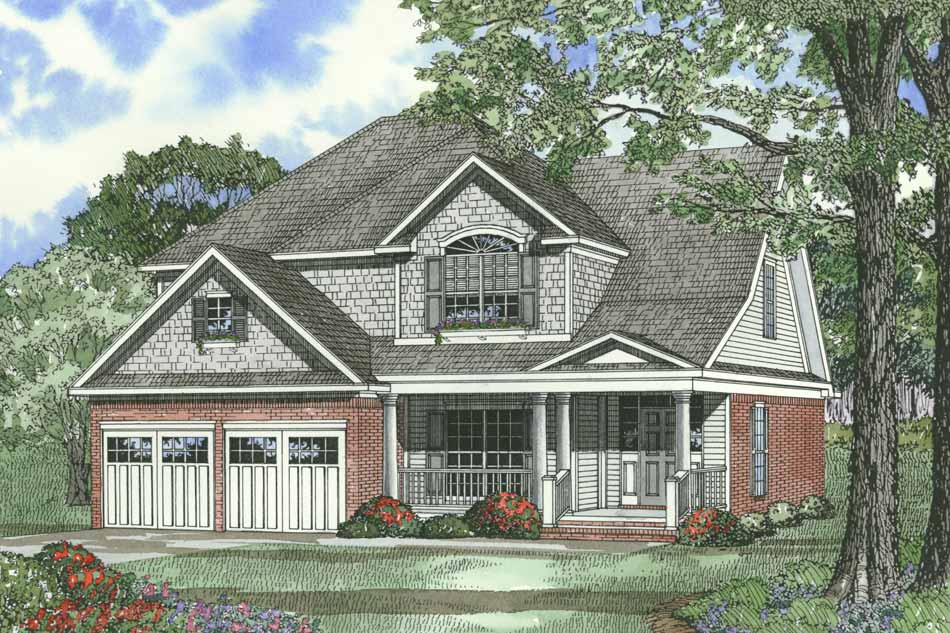

House Plan 604 Cypress Drive, Craftsman Bungalow House Plan

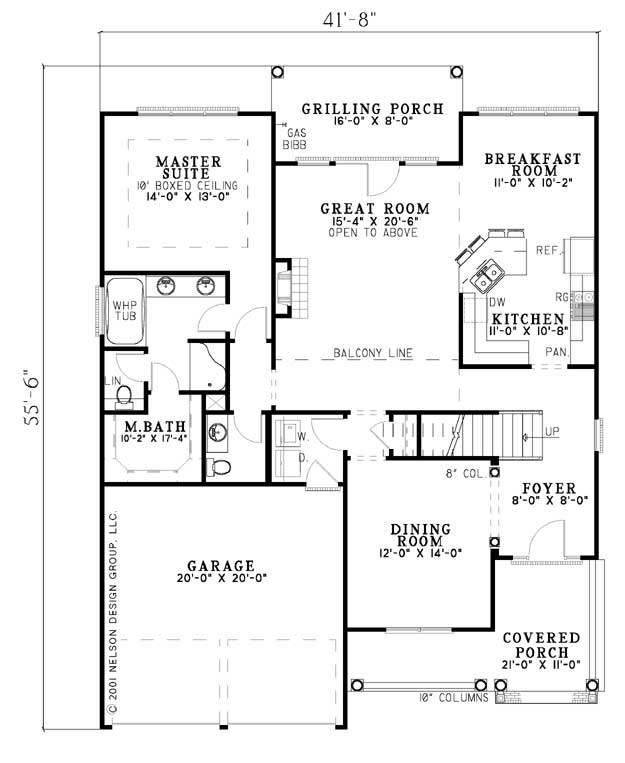

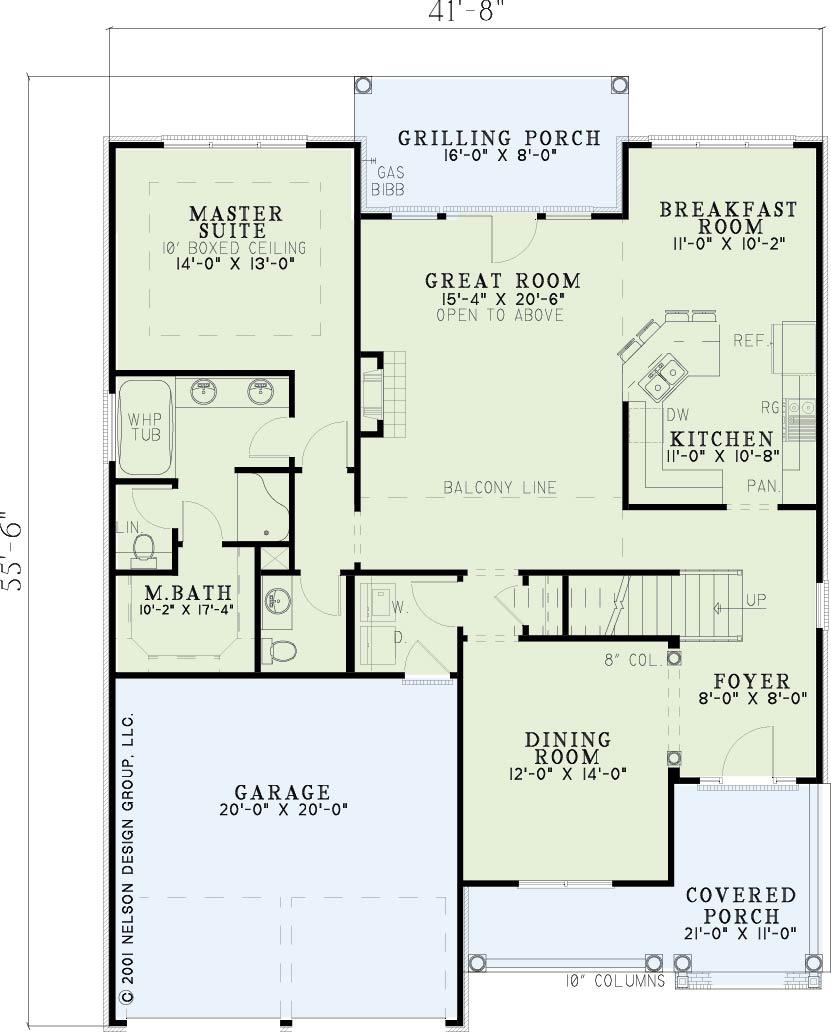

House Plan NDG 604 Main Floor

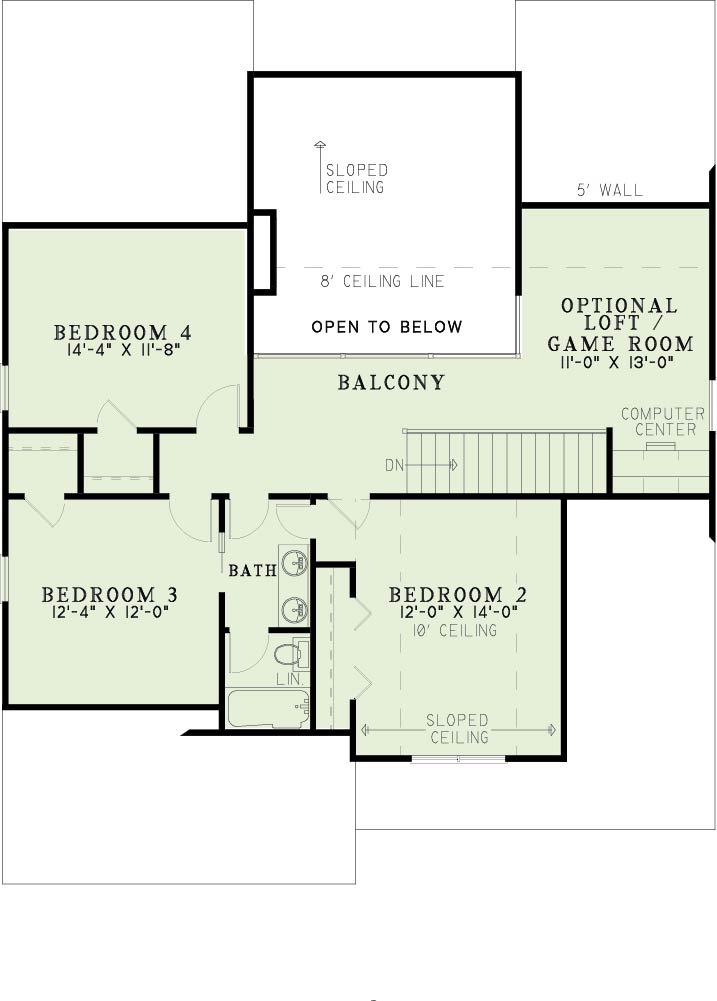

House Plan NDG 604 Upper Floor
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
House Plan NDG 604 Main Floor
House Plan NDG 604 Upper Floor

Floor plans

NDG 604

House Plan 604 Cypress Drive, Craftsman Bungalow House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 604
  • Total Living Space:2244Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 41
  • Width In.: 8
  • Depth Ft.: 55
  • Depth In.: 6

Description

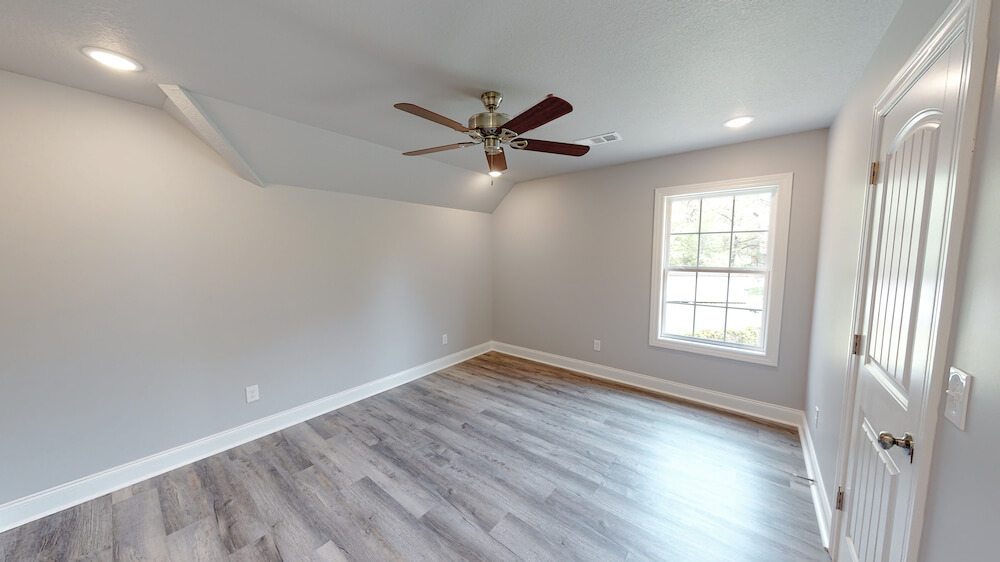

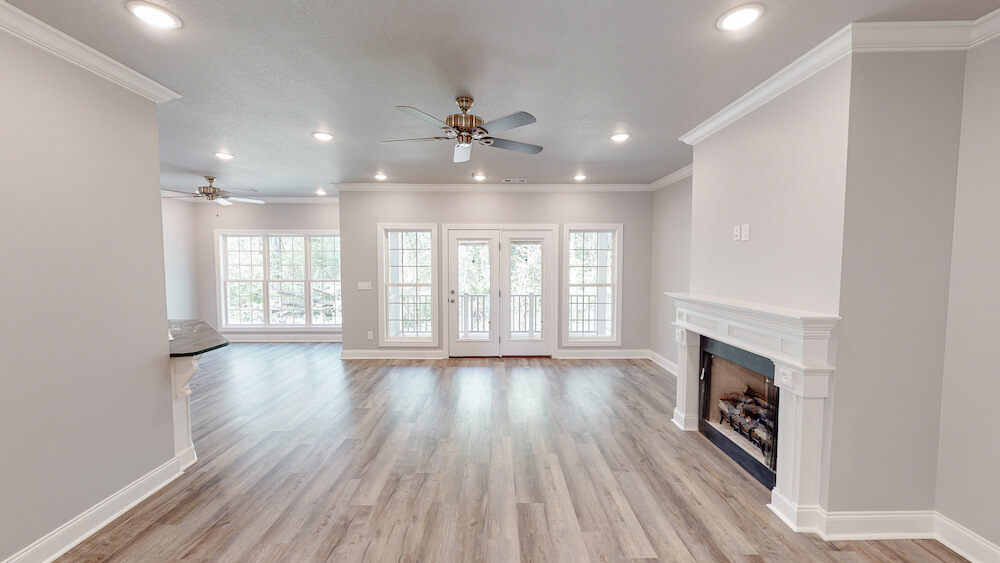

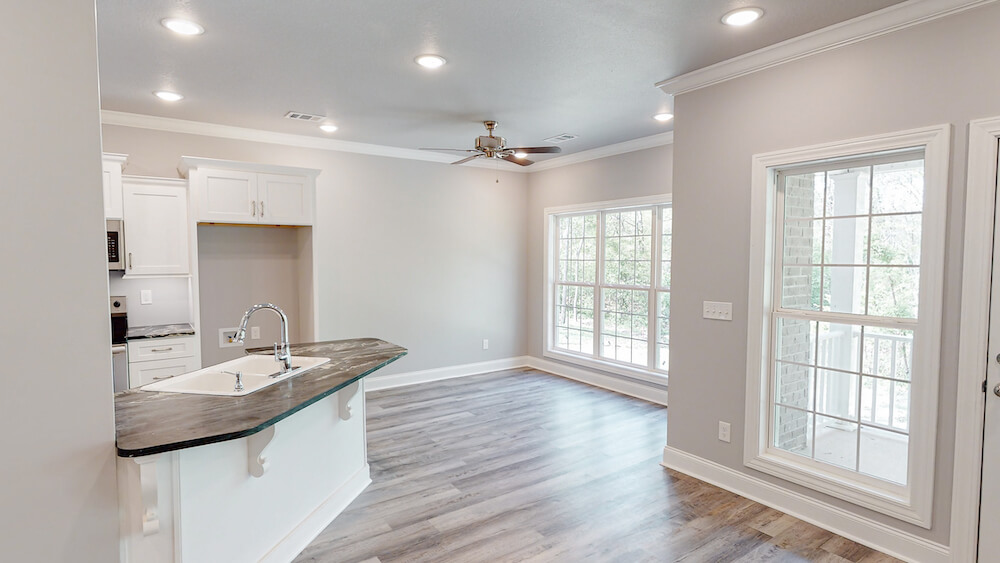

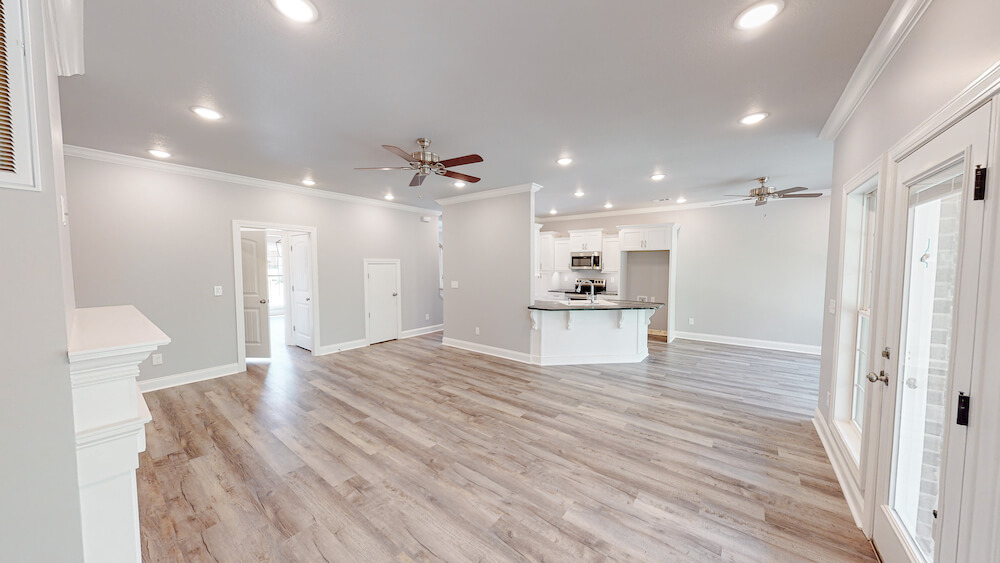

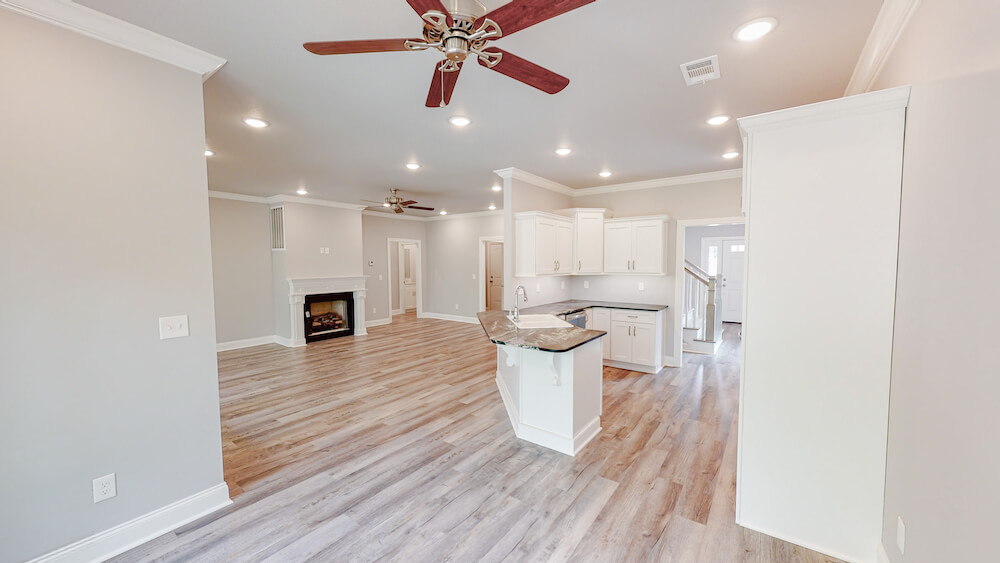

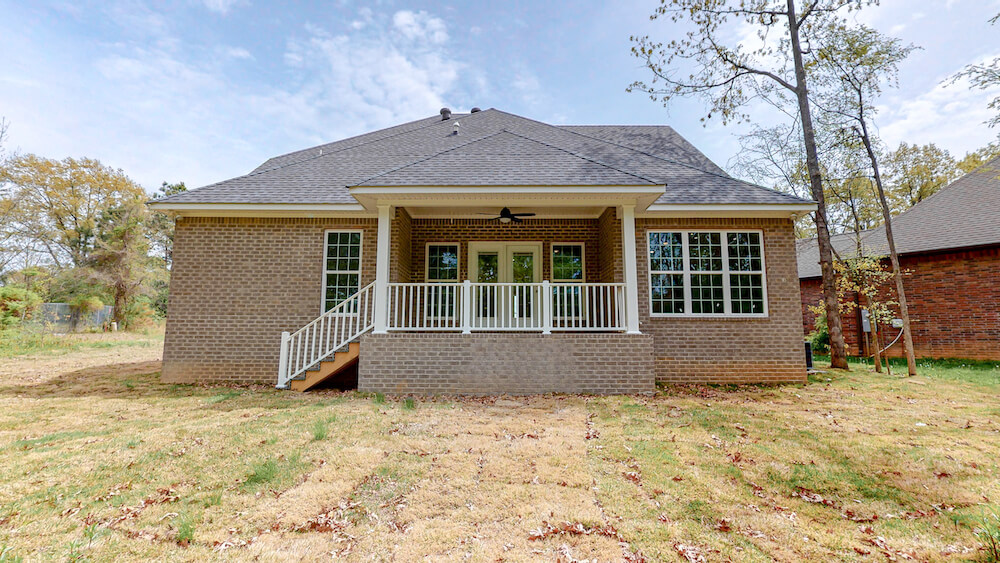

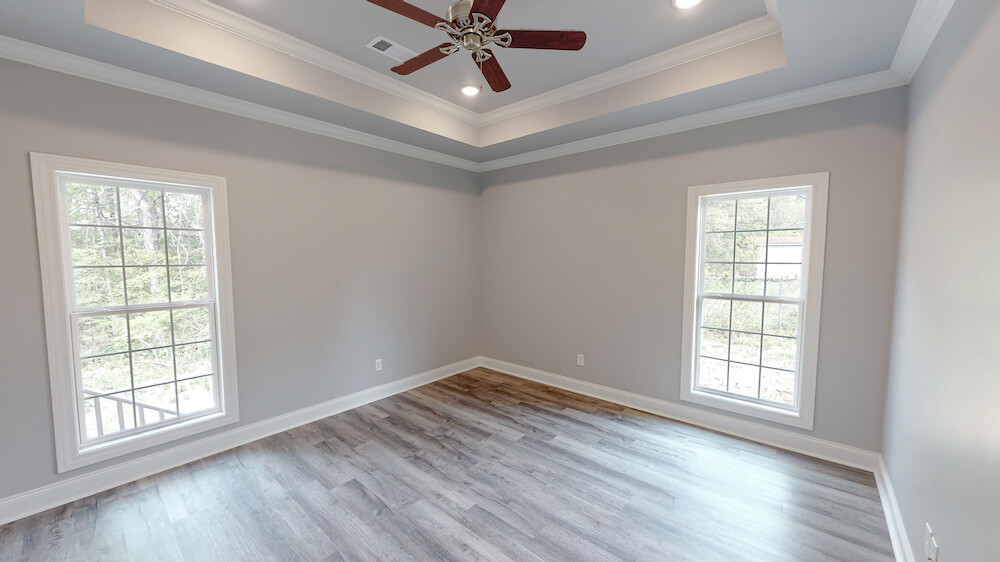

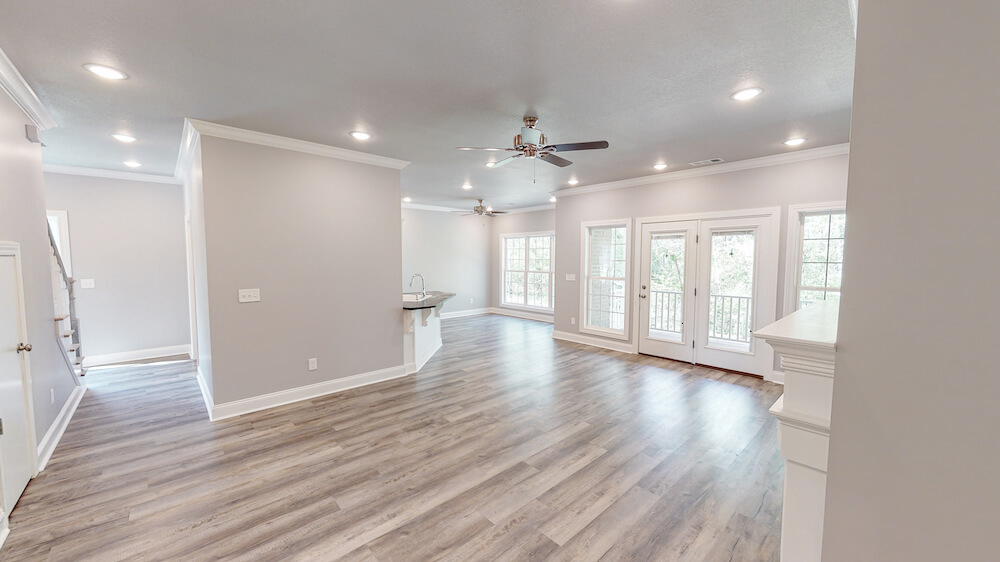

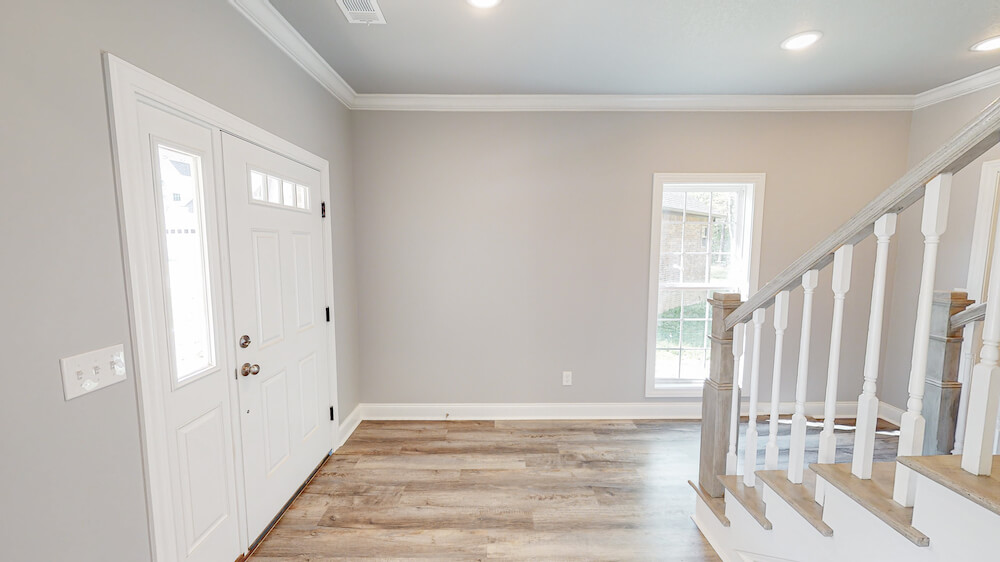

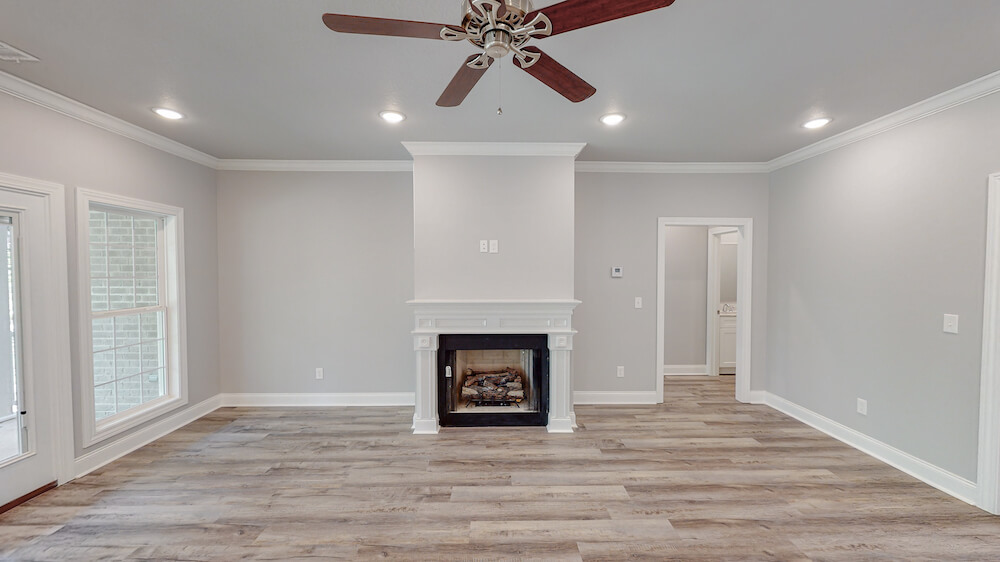

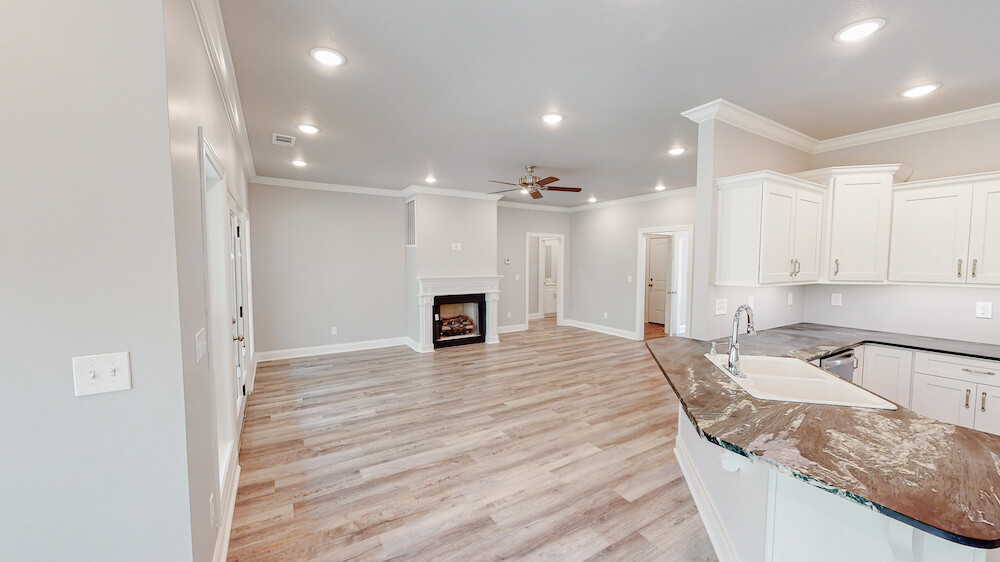

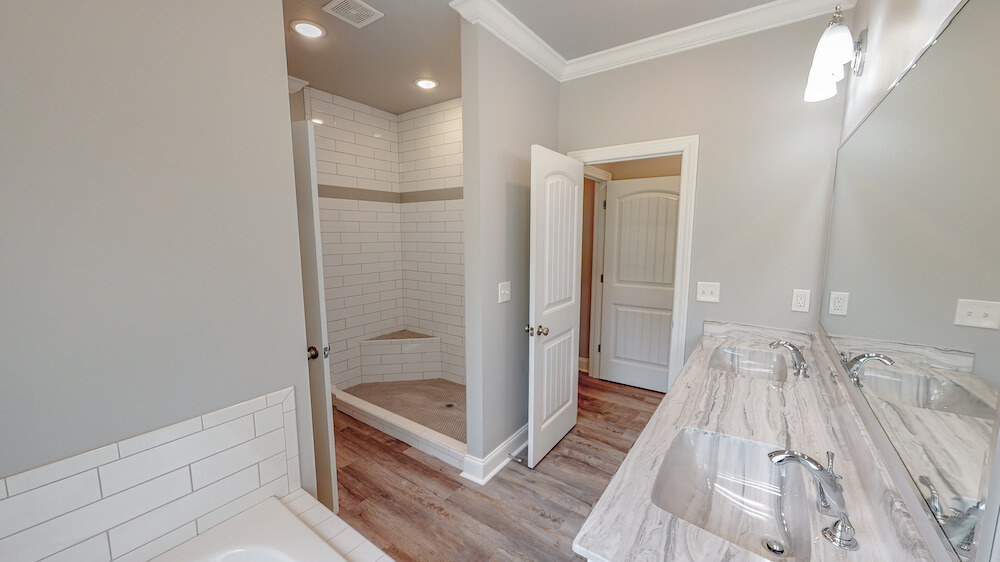

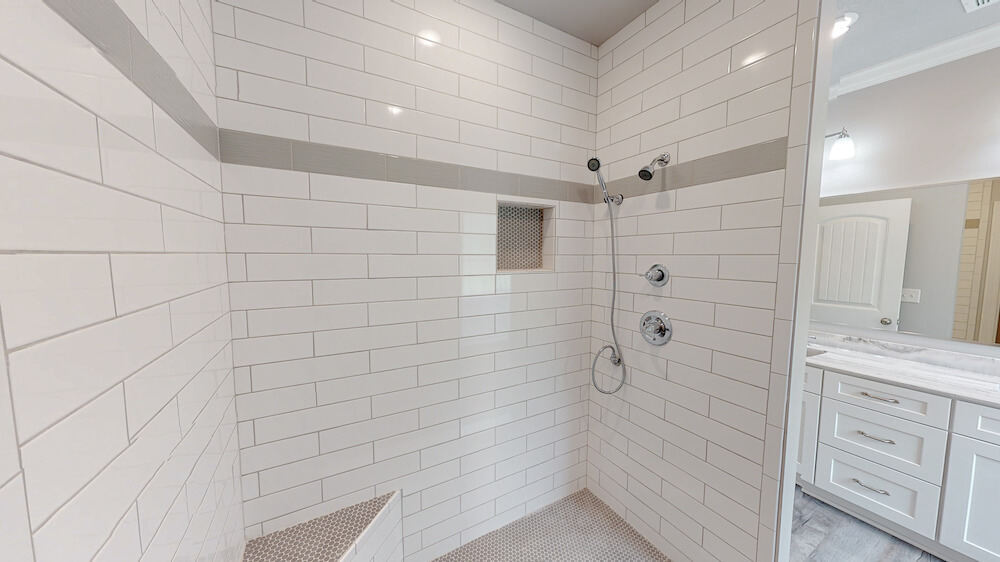

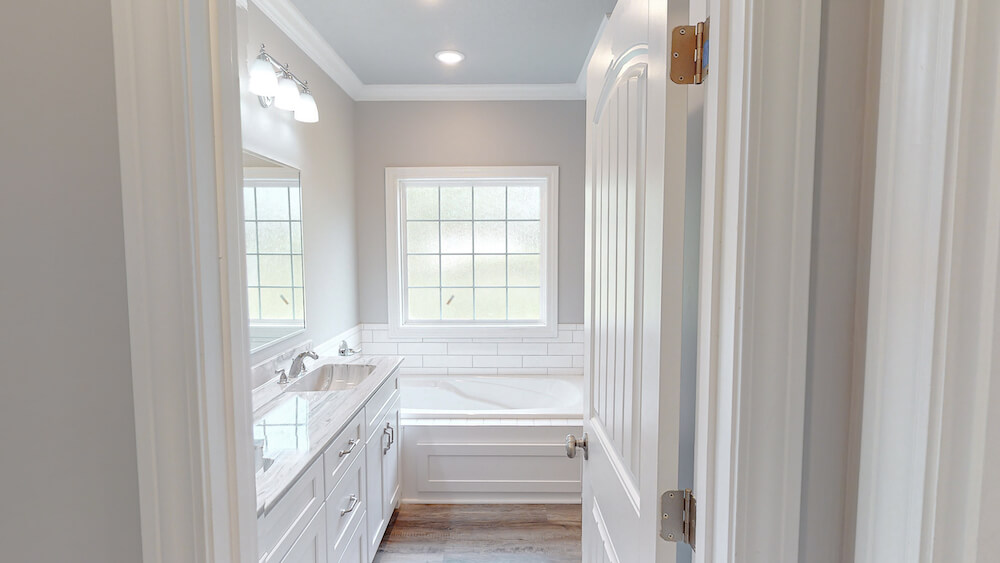

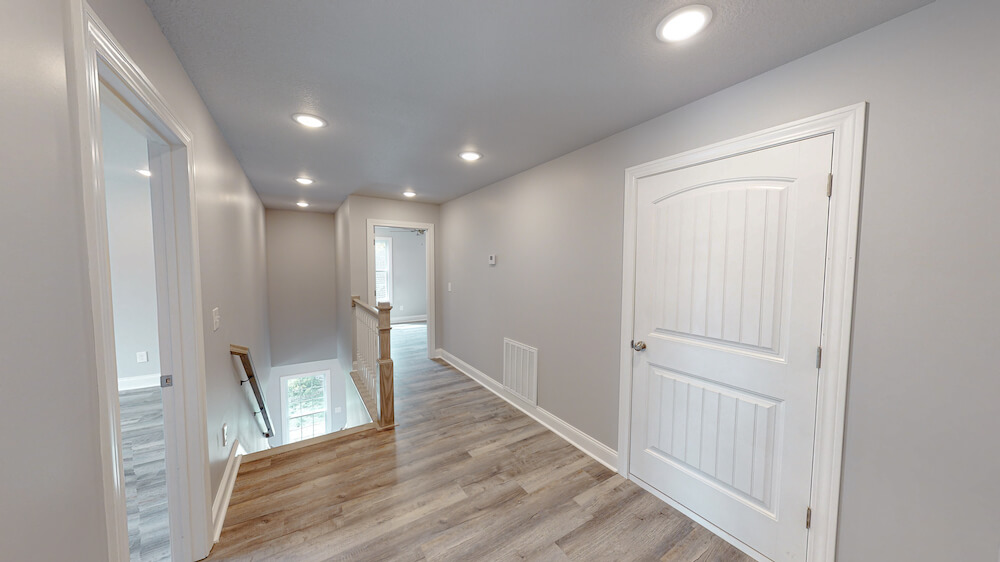

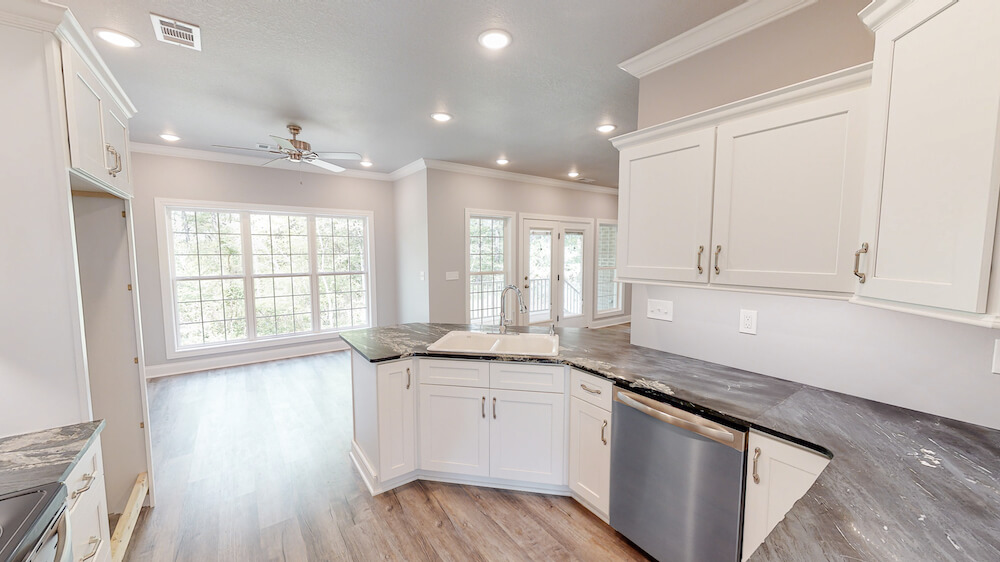

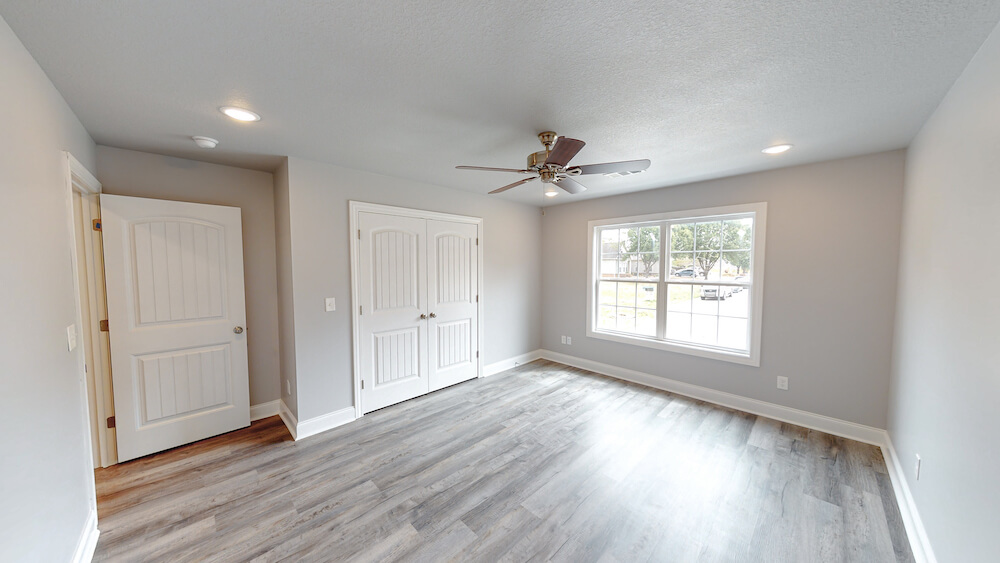

Old is new again. This craftsman style plan has everything that a family needs for the ultimate in spaciousness and entertaining. A foyer leads into the formal dining room, which can also be used as a study if desired. The great room with fireplace views the upper balcony and accesses the rear-grilling porch, perfect for entertaining. Nearby is a breakfast room and kitchen combination with an angled bar counter for extra seating, plenty of windows for natural light and perfect for the ultimate Sunday brunch. The Master Suite has a ten foot boxed ceiling and private bathroom full of amenities. Upstairs houses the three additional bedrooms, full bath and optional game room.

Specifications

  • Total Living Space:2244Sq.Ft.
  • Main Floor: 1449 Sq.Ft
  • Upper Floor (Sq.Ft.): 795 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 181 Sq.Ft.
  • Porch (Sq.Ft.): 287 Sq.Ft.
  • Garage (Sq.Ft.): 416 Sq.Ft.
  • Total Square Feet: 3128 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 10:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 29
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
