Garage Plan 1487 4-Car European Garage plan, Garage & Pool House Plan

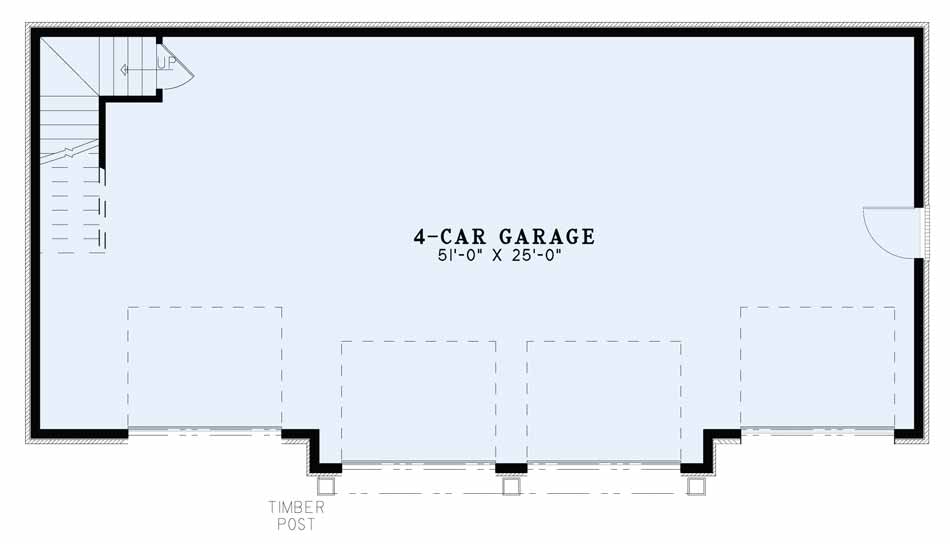

Garage Plan-NDG1487 Main Floor

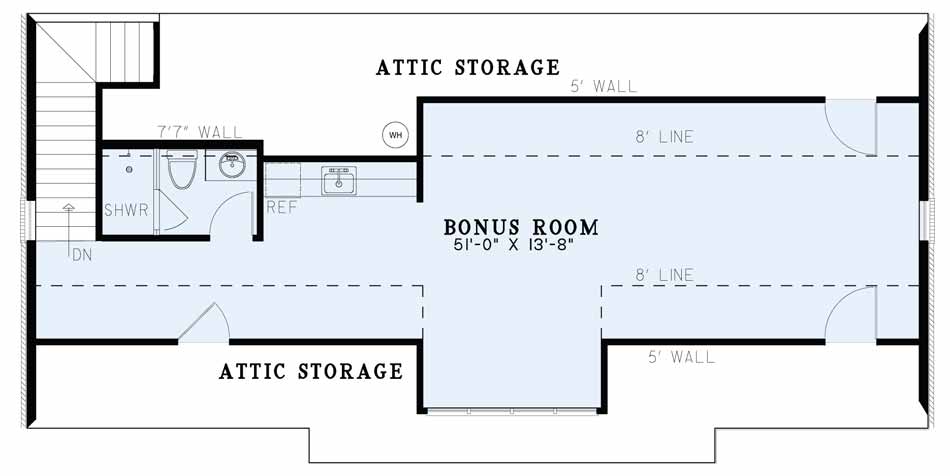

Garage Plan-NDG1487-Bonus Room
Garage Plan-NDG1487 Main Floor
Garage Plan-NDG1487-Bonus Room

Floor plans

NDG 1487

Garage Plan 1487 4-Car European Garage plan, Garage & Pool House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1487
  • Total Living Space:N/A
  • Bedrooms: N/A
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: 4 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 52
  • Width In.: 2
  • Depth Ft.: 27
  • Depth In.: 3

Description

This 4 car garage plan would complement a European style house plan. This elegant garage plan also features a large space above with a full bath and efficiency kitchen.

Specifications

  • Total Living Space:N/A
  • Main Floor: N/A
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 705 Sq.Ft.
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): 1289 Sq.Ft.
  • Total Square Feet: 2003 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
